- 3 WAY BALL VALVE CLAMP

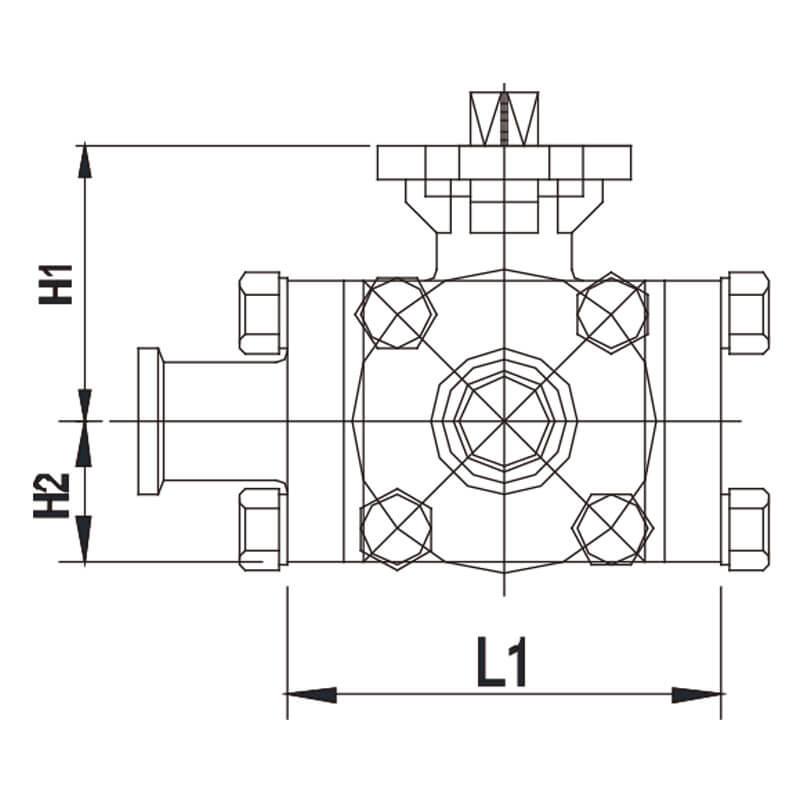

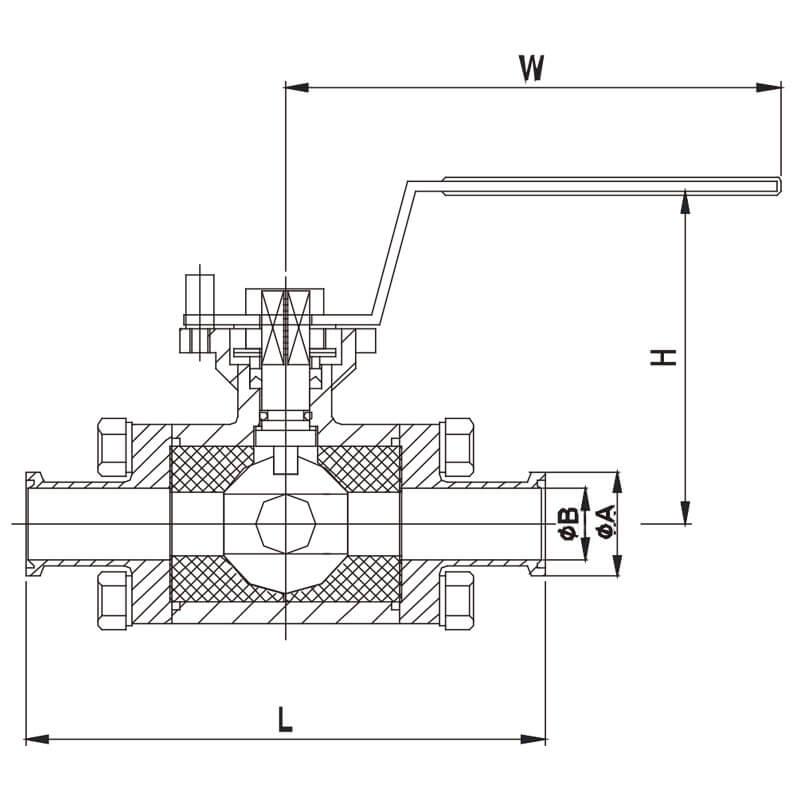

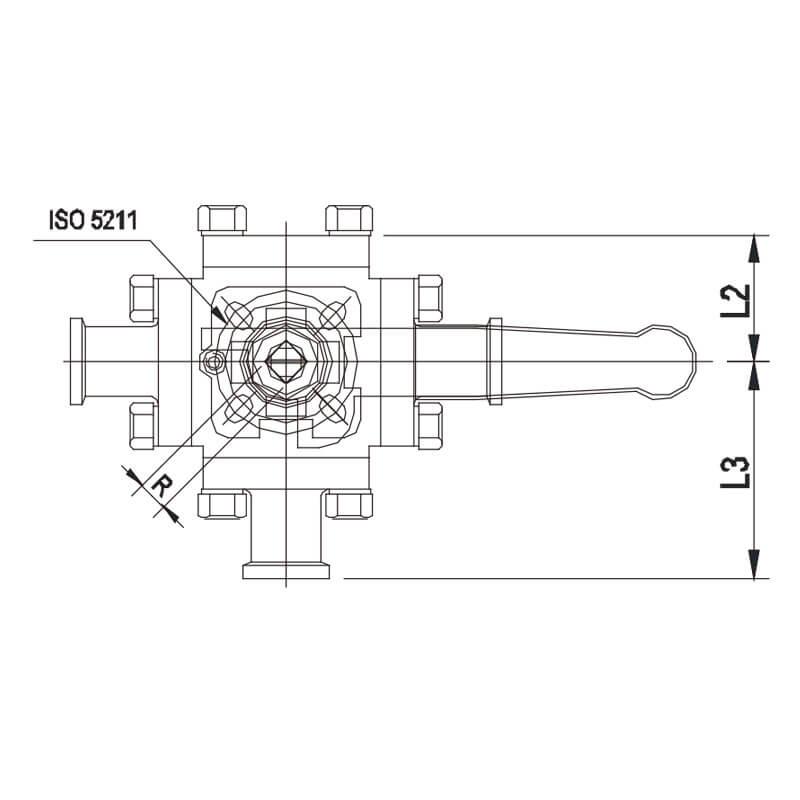

- Dimensions

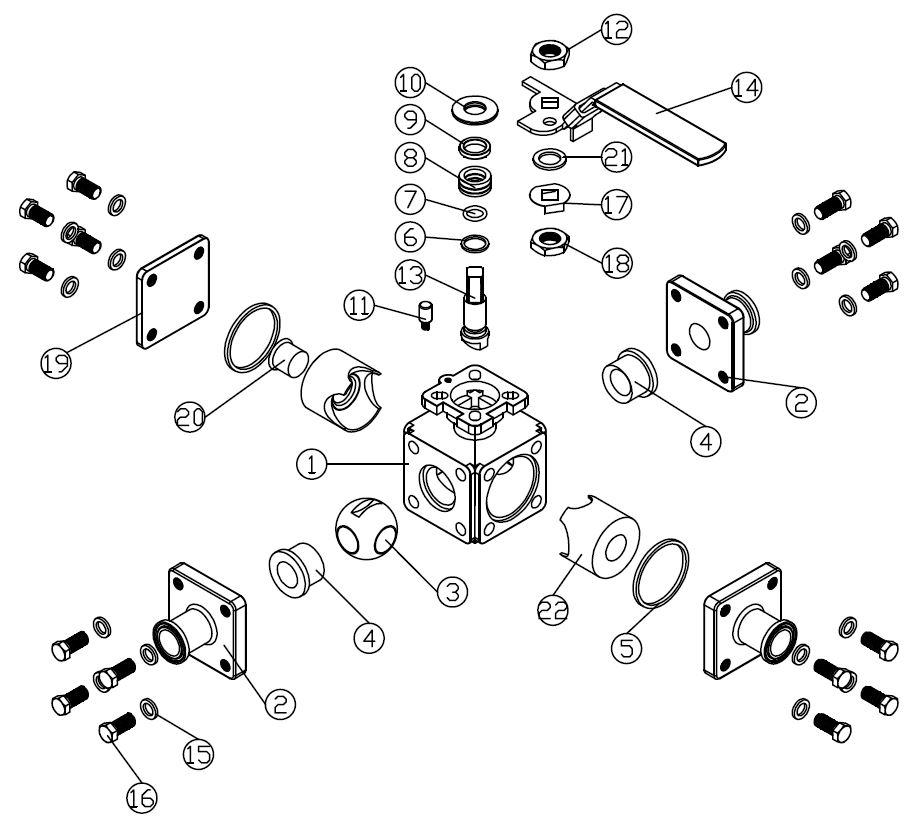

- Material List
-
SERIES: Y40HCS
FOUR PIECE THREE WAY SANITARY BALL VALVE CLAMP END
FEATURES:* SIZE AVAILABLE: 1/2"~2"
* LOCKING DEVICE HANDLE
* BLOW-OUT PROOF STEM
* ISO 5211 DIRECT MOUNTING PAD
* MATERIAL: PASSIVATED 316 STAINLESS STEEL (ASTM A351, CF8M)
* PTFE CAVITY FILLER, FULLY ENCAPSULATED
* T-PORT OR L-PORT
|
SIZE |
ISO-5211 |
W |
H |
H1 |
L |
øB |
øA |
L1 |
L2 |
L3 |
H2 |
R |
TORQUE
IN/LBS |
|
|
1/2" |
F03 / F04 |
121 |
78 |
44.5 |
118 |
9.5 |
25.4 |
70 |
35.0 |
59 |
23.5 |
9 |
M12x1.75 |
79 |
|
3/4" |
F03 / F04 |
121 |
82 |
48 |
127 |
15.8 |
25.4 |
77 |
38.5 |
63.5 |
26 |
9 |
M12x1.75 |
85 |
|
1" |
F04 / F05 |
137 |
90 |
59 |
152.4 |
22.2 |
50.4 |
86 |
43.0 |
76.2 |
30.5 |
11 |
M14xP2 |
110 |
|
1-1/2" |
F05 / F07 |
182 |
110 |
72 |
175 |
35 |
50.4 |
111 |
55.5 |
87.5 |
40 |
14 |
M18xP2.5 |
290 |
|
2" |
F05 / F07 |
182 |
114.7 |
82 |
190 |
47.6 |
63.9 |
124 |
62.0 |
95.0 |
50 |
14 |
M18xP2.5 |
680 |
|
NO |
PART |
MATERIAL |
QTY |
|
|
1 |
BODY |
A351-CF8M |
A351-CF3M |
1 |
|
2 |
CAP |
A351-CF8M |
A351-CF3M |
4 |
|
3 |
BALL |
A351-CF8M |
A351-CF3M |
1 |
|
4 |
SEAT1 |
PTFE |
PTFE |
2 |
|
5 |
GASKET |
PTFE |
PTFE |
2 |
|
6 |
THRUST WASHER |
PTFE |
PTFE |
1 |
|
7 |
O-RING |
VITON |
VITON |
1 |
|
8 |
STEM PACKING |
PTFE |
PTFE |
1 |
|
9 |
RING |
AISI 316 |
AISI 304 |
1 |
|
10 |
BEVEL WASHER |
AISI 301 |
AISI 301 |
2 |
|
11 |
STOP PIN |
AISI 316 |
AISI 316 |
1 |
|
12 |
NUT |
AISI 304 |
AISI 304 |
1 |
|
13 |
STEM |
AISI 316 |
AISI 316 |
1 |
|
14 |
HANDLE |
AISI 304 |
AISI 304 |
1 |
|
15 |
SPRING WASHER |
AISI 304 |
AISI 304 |
16 |
|
16 |
BOLT |
AISI 304 |
AISI 301 |
16 |
|
17 |
LOCKING TAB |
AISI 304 |
AISI 304 |
1 |
|
18 |
THINNER NUT |
AISI 304 |
AISI 304 |
1 |
|
19 |
END CAP |
A351-CF8M |
A216-WCB |
1 |
|
20 |
SEAT BACK |
PTFE |
PTFE |
1 |
|
21 |
PLAIN WASHER |
AISI 304 |
AISI 304 |
1 |
|
22 |
SEAT2 |
PTFE |
PTFE |
2 |
