- CHECK VALVE-CLAMP (NON-RETURN)

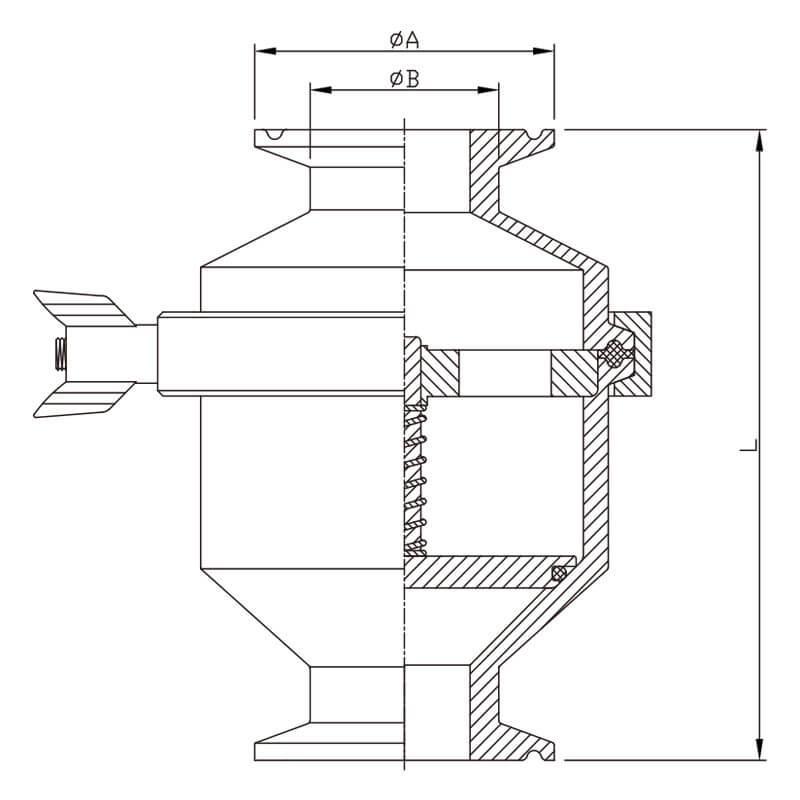

- Dimensions
- Material List
Unit: mm
|
SIZE |
øA |
øB |
L |
|
1" |
50.5 |
25.4 |
87.5 |
|
1.5" |
50.5 |
38.1 |
95.5 |
|
2" |
64.0 |
50.8 |
104.5 |
|
2.5" |
77.5 |
63.5 |
116.2 |
|
3" |
91.0 |
76.2 |
123.5 |
|
4" |
119.0 |
101.6 |
123.5 |
|
NO |
PART |
MATERIAL |
|
1 |
OUTLET(Body/Bonnet) |
SUS-304, 316, 316L |
|
2 |
CLAMP |
SUS-304 |
|
3 |
GASKET |
VITON, EPDM, SILICONE |
|
4 |
PLATE |
SUS-304, 316, 316L |
|
5 |
SPRING |
SUS-304, 316 |
|
6 |
SEAL |
VITON, EPDM, SILICONE |
|
7 |
INLET(Lower Body) |
SUS-304, 316, 316L |
Working Pressure: 0.6-10 BAR
