- PNEUMATIC SEAT VALVE

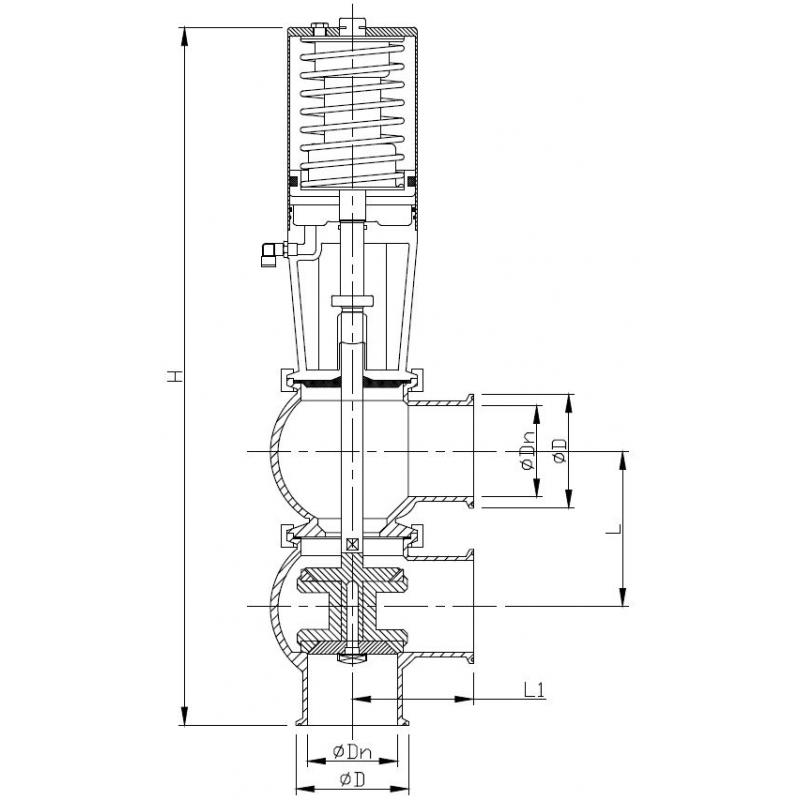

- Dimensions
Unit: mm
|
SIZE |
øD |
øDn |
L |
L1 |
H |
|
1" |
50.5 |
22.4 |
72.0 |
80.0 |
419.0 |
|
1.5" |
50.5 |
35.0 |
72.0 |
80.0 |
419.0 |
|
2" |
64.0 |
47.8 |
92.0 |
93.0 |
442.0 |
|
2.5" |
77.5 |
60.2 |
100.0 |
98.0 |
480.0 |
