- 三通夾式氣動控制球閥
- 規格
- 材料表
-
FEATURES:

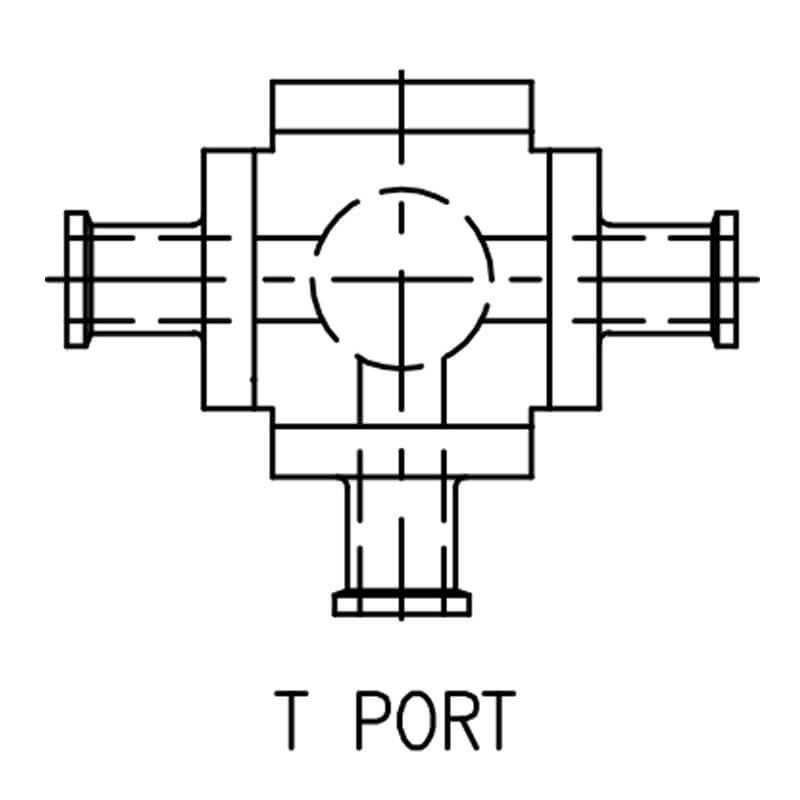

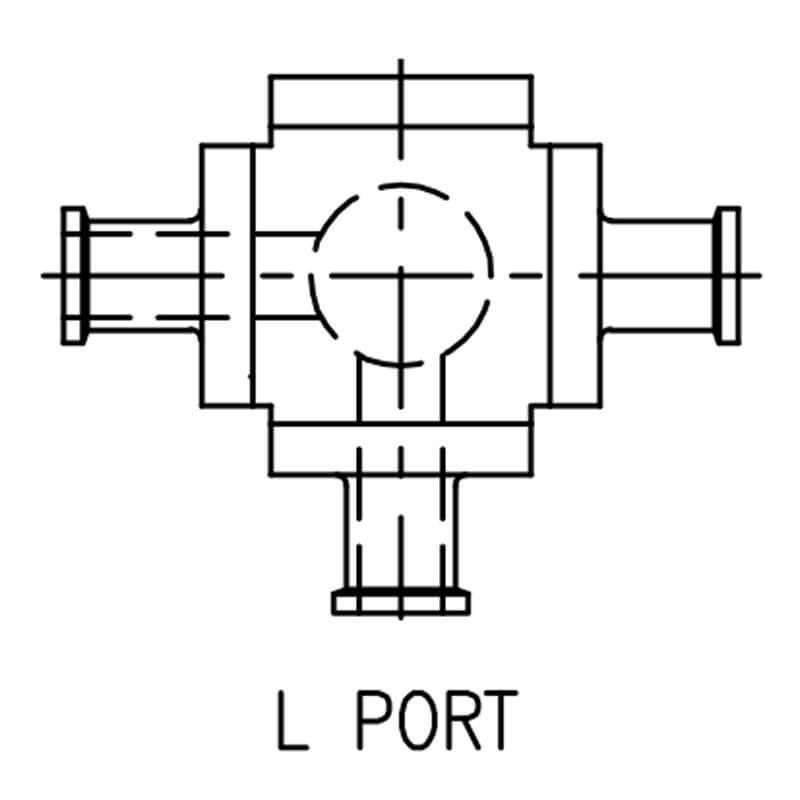

* PNEUMATIC ACTUATED 4 PIECE 3-WAY BALL VALVE CLAMP END
* SIZE AVAILABLE: 1/2"~4"
* PRESSURE 1000/800/600 PSI
* BLOW-OUT PROOF STEM
* ISO 5211 DIRECT MOUNTING PAD
* MATERIAL: PASSIVATED 316 STAINLESS STEEL (ASTM A351, CF8M)
* PTFE CAVITY FILLER, FULLY ENCAPSULATED
|
BALL VALVE / SERIE SV-4HCS |
|||||||
|
SIZE |
DN |
ISO-5211 |
L1 |
L |
ød |
øD |
INCH/LBS
TORQUE |
|
1/2" |
15 |
F03 / F04 |
89 |
118 |
9.5 |
25.4 |
60 |
|
3/4" |
20 |
F03 / F04 |
96 |
127 |
15.8 |
25.4 |
75 |
|
1" |
25 |
F04 / F05 |
115 |
153 |
22.2 |
50.4 |
105 |
|
1-1/2" |
40 |
F05 / F07 |
137 |
175 |
35.0 |
50.4 |
190 |
|
2" |
50 |
F05 / F07 |
153 |
190 |
47.6 |
63.9 |
275 |
|
2-1/2" |
65 |
F07 / F10 |
166 |
228 |
60.3 |
77.5 |
680 |
|
3" |
80 |
F07 / F10 |
193 |
261 |
73.0 |
90.9 |
890 |
|
4" |
100 |
F10 / F12 |
247 |
290 |
97.4 |
118.9 |
1105 |

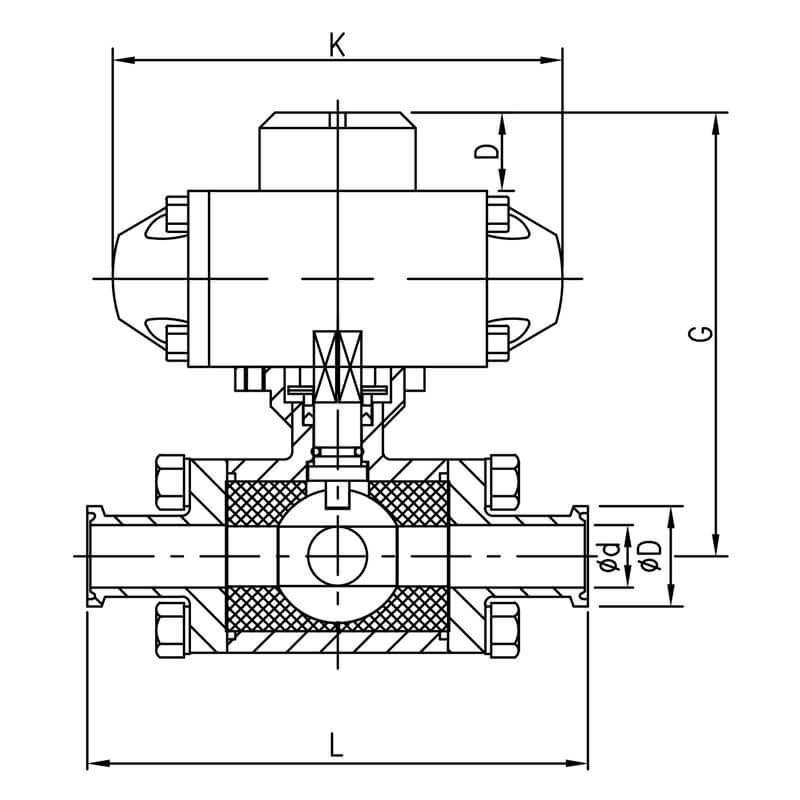

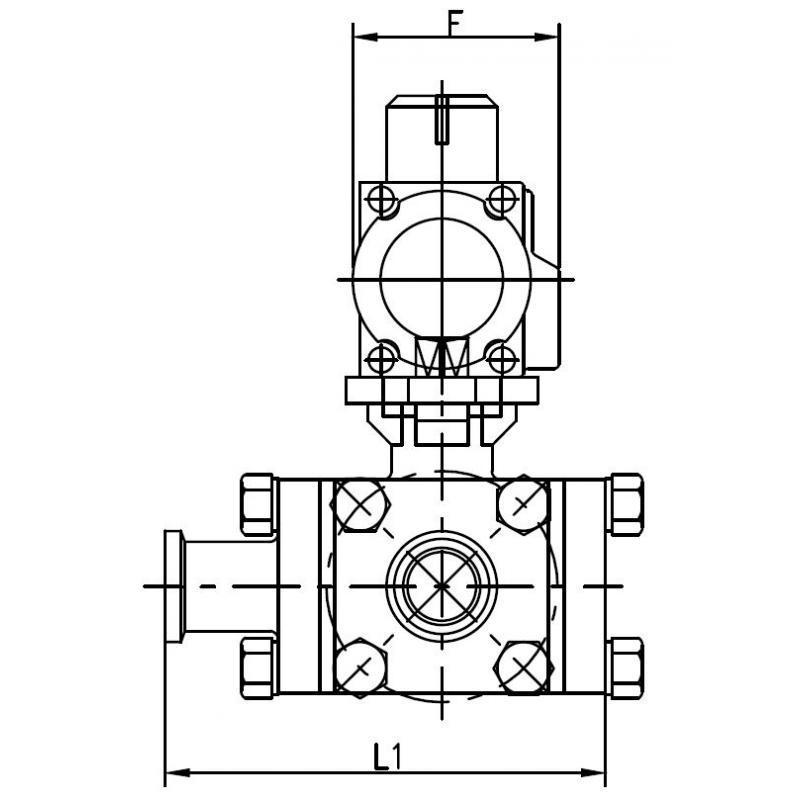

PENUMATIC ACTUATOR MODEL & DIMENSION
|
BM-DA |
DN |
D |
F |
G |
K |
|
32-DA |
15 |
21 |
46 |
107 |
110 |
|
32-DA |
20 |
21 |
46 |
114 |
110 |
|
50-DA |
25 |
26 |
65 |
149 |
147 |
|
75-DA |
40 |
26 |
81 |
192 |
184 |
|
75-DA |
50 |
26 |
81 |
200 |
184 |
|
100- DA |
65 |
30 |
110 |
251 |
268 |
|
125- DA |
80 |
30 |
128 |
296 |
301 |
|
125- DA |
100 |
30 |
128 |
301 |
301 |
|
ITEM |
PARTS |
MATERIAL |
QTY |
|
|
1 |
BODY |
A351-CF8M |
CF3M |
1 |
|
2 |
CAP |
A351-CF8M |
CF3M |
4 |
|
3 |
BALL |
A351-CF8M |
CF3M |
1 |
|
4 |
SEAT |
PTFE |
TFM-1600 |
4 |
|
5 |
GASKET |
PTFE |
PTFE |
2 |
|
6 |
THRUST WASHER |
PTFE |
PTFE |
1 |
|
7 |
O-RING |
VITION |
VITON |
1 |
|
8 |
STEM PACKING |
PTFE |
PTFE |
1 |
|
9 |
RING |
AISI 316 |
AISI 304 |
1 |
|
10 |
BEVEL WASHER |
AISI 301 |
AISI 301 |
2 |
|
11 |
STOP PIN |
AISI 316 |
AISI 316 |
1 |
|
12 |
NUT |
AISI 304 |
AISI 304 |
1 |
|
13 |
STEM |
AISI 316 |
AISI 316 |
1 |
|
14 |
HANDLE |
AISI 304 |
AISI 304 |
1 |
|
15 |
SPRING WASHER |
AISI 304 |
AISI 304 |
16 |
|
16 |
BOLT |
AISI 304 |
AISI 304 |
16 |
|
17 |
PREVAILING |
PVEICE |
AISI 304 |
1 |
|
18 |
NUT |
AISI 304 |
AISI 304 |
1 |
