SERIES: Y30MCS
THREE PIECE TWO-WAY SANITARY BALL VALVE CLAMP END
FEATURES:* SIZE AVAILABLE: 1/2"~4"
* LOCKING DEVICE HANDLE
* BLOW-OUT PROOF STEM
* ISO 5211 DIRECT MOUNTING PAD
* MATERIAL: PASSIVATED 316 STAINLESS STEEL (ASTM A351, CF8M)
* PTFE CAVITY FILLER, FULLY ENCAPSULATED
|

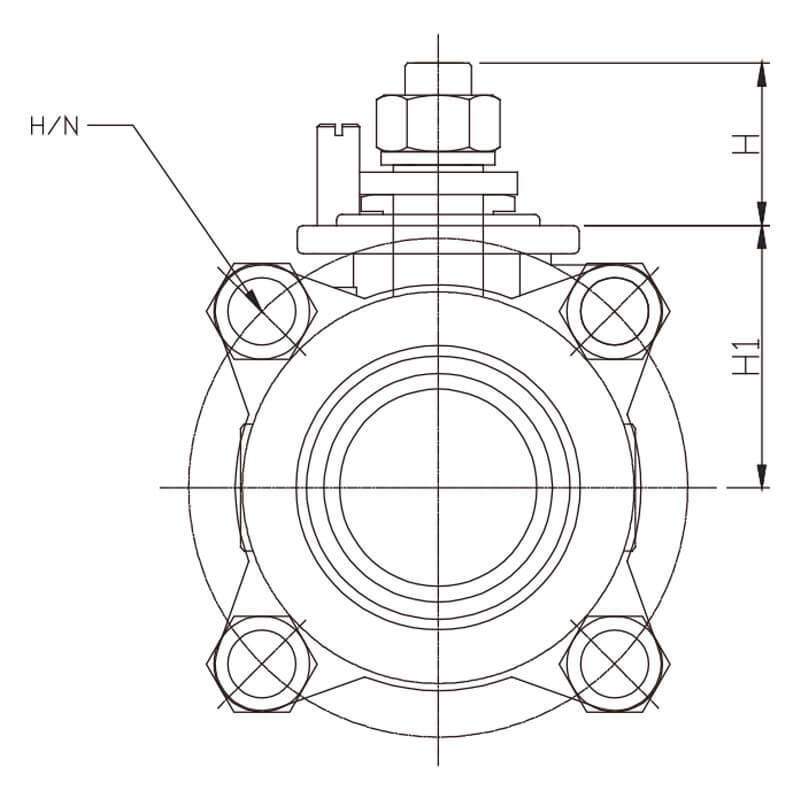

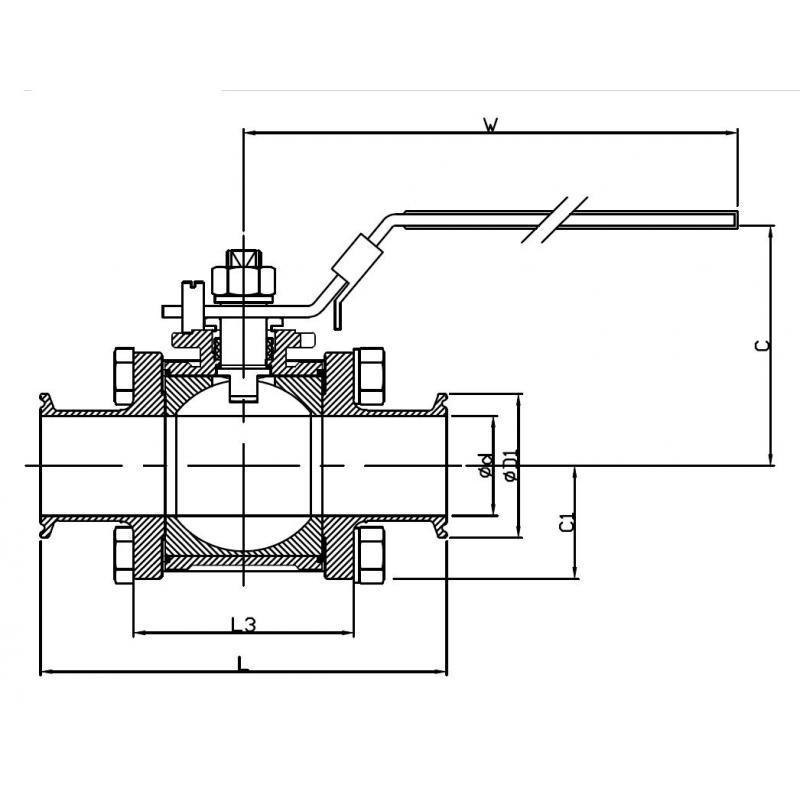

SIZE |
DN |

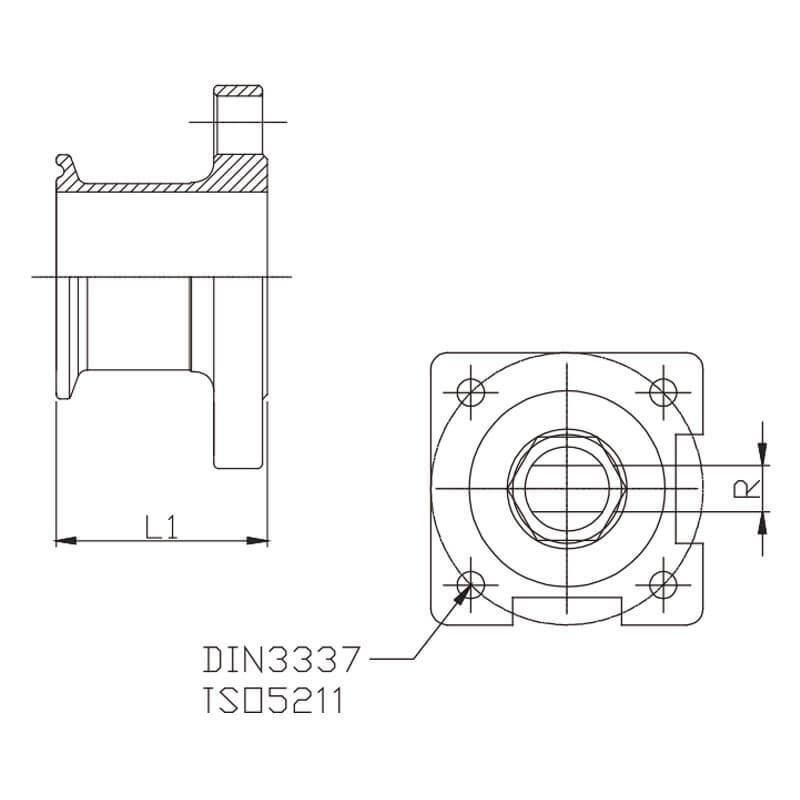

ISO 5211 |
H |
C |
L |
W |
ød |
øD |
L1 |
L3 |
C1 |
H1 |
R |
H/N |
|
TORQUE
IN/LBS |
|
|
1/2" |
15 |
F03 |
18.0 |
60 |
89 |
132 |
9.5 |
25.4 |
32.8 |
43.5 |
24.5 |
29.5 |
5.0 |
M8xP1.25 |
4 |
46.2 |
42 |
|
3/4" |
20 |
F03 |
18.5 |
65 |
101 |
132 |
15.9 |
25.4 |
36.5 |
48 |
27 |
34 |
5.0 |
M8xP1.25 |
4 |
53 |
58 |
|
1" |
25 |
F04 |
22.5 |
69 |
114 |
165 |
22.2 |
50.4 |
40 |
53 |
29.2 |
34.5 |
6.5 |
M8xP1.25 |
4 |
60 |
83 |
|
1.5" |
40 |
F05 |
29.6 |
89 |
140 |
194 |
35 |
50.4 |
43.5 |
75 |
40.3 |
48 |
8.5 |
M12xP1.75 |
4 |
84.5 |
150 |
|
2" |
50 |
F05 |
29.6 |
97 |
156 |
194 |
47.6 |
63.9 |
45.8 |
88.5 |
47.6 |
45 |
8.5 |
M12xP1.75 |
4 |
103.5 |
298 |
|
2.5" |
65 |
F07 |
44.5 |
127 |
197 |
252 |
60.3 |
77.5 |
56 |
111 |
62 |
75.8 |
12 |
3/4"x10UNC |
4 |
136 |
512 |
|
3" |
80 |
F07 |
44.5 |
135 |
229 |
252 |
73.0 |
90.9 |
64.5 |
130 |
68.7 |
84.5 |
12 |
3/4"x10UNC |
4 |
155 |
685 |
|
4" |
100 |
F10 |
48.8 |
159 |
243 |
333 |
97.4 |
118.9 |
60.6 |
153.5 |
100.5 |
105 |
16 |
1"x8unc |
6 |
193 |
996 |
|
NO |
PART NAME |
SPECIFICATION |
QTY |
|
1 |
BODY |
ASTM A351 CF8M |
1 |
|
2 |
END CAP |
ASTM A351 CF8M |
2 |
|
3 |
BALL |
A351-CF8M |
1 |
|
4 |
SEAT |
PTFE |
2 |
|
5 |
GASKET |
PTFE |
2 |
|
6 |
STEM |
ANSI-316 |
1 |
|
7 |
THRUST WASHER |
PTFE |
1 |
|
8 |
STEM PACKINGS |
PTFE |
1 |
|
9 |
BOLTS |
ANSI-304 |
4 |
|
10 |
BOLT NUTS |
ANSI-304 |
4 |
|
11 |
BOLT WASHERS |
ANSI-304 |
4 |
|
12 |
GLAND |
ANSI-304 |
1 |
|
13 |
WASHER |
ANSI-304 |
1 |
|
14 |
HANDLE NUT |
ANSI-304 |
1 |
|
15 |
PLASTIC COVER |
PLASTIC |
1 |
|
16 |
HANDLE |
ANSI-304 |
1 |
|
17 |
LOCKING DEVICE |
ANSI-304 |
1 |
|
18 |
STOP PIN |
ANSI-304 |
1 |
