- 玻璃視窗-焊式

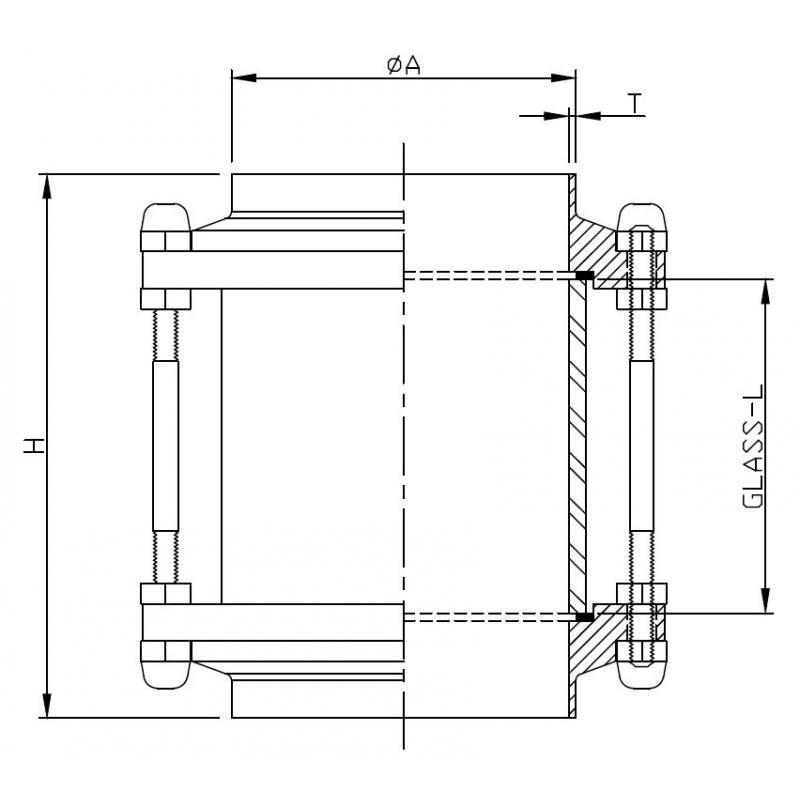

- 規格

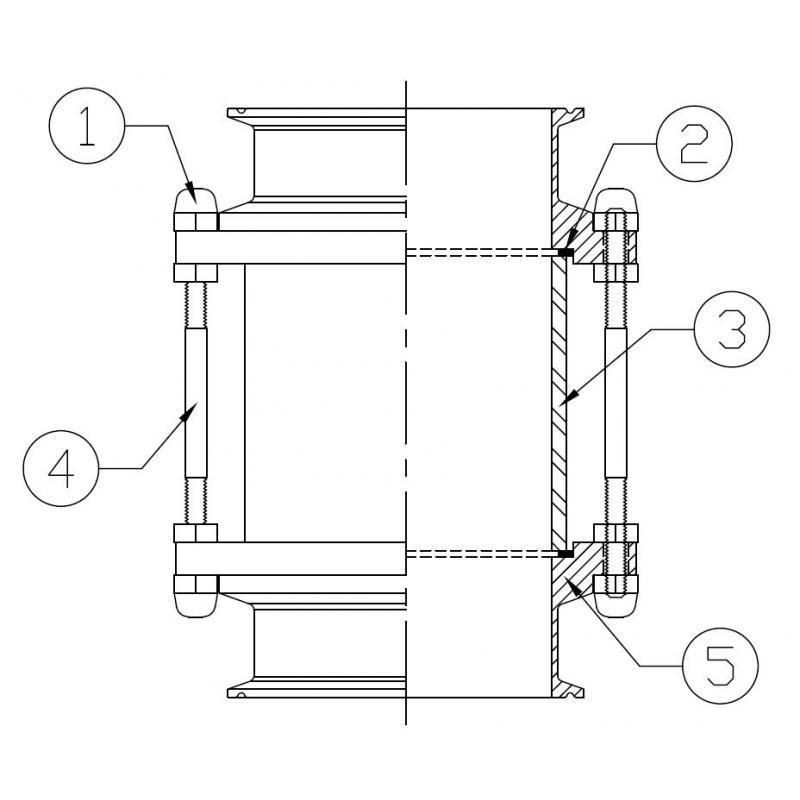

- 材料表
Unit: mm
|
SIZE |
øA |
H |
GLASS |
|
1" |
25.4 |
145.0 |
100.0 |
|
1.5" |
38.1 |
163.5 |
100.0 |
|
2" |
50.8 |
170.0 |
100.0 |
|
2.5" |
63.5 |
150.0 |
100.0 |
|
3" |
76.2 |
155.0 |
100.0 |
|
4" |
101.6 |
158.0 |
100.0 |
|
NO |
PART |
MATERIAL |
|
1 |
SCREW NUT |
SUS-304 |
|
2 |
SEAL |
VITON, EPDM, SILICONE |
|
3 |
GLASS |
NON-TOXIC |
|
4 |
SCREW BOLT |
SUS-304 |
|
5 |
BODY |
SUS-304, 316L |
