- 氣動式蝶閥

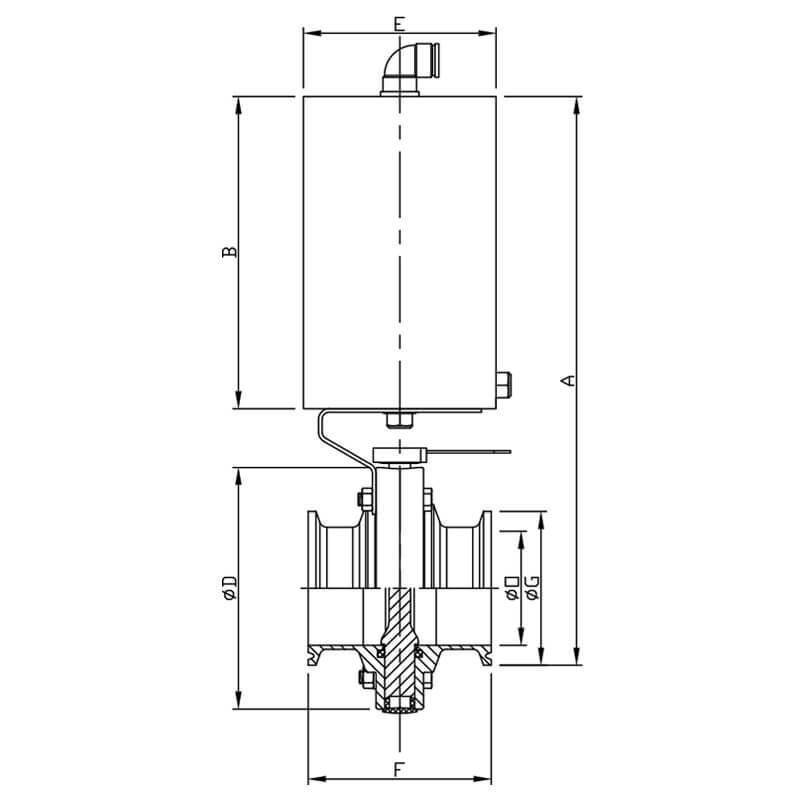

- 規格
Unit: mm
|
SIZE |
A |
B |
øD |
E |
F |
øG |
øO |
|
1" |
258.0 |
148.0 |
78.0 |
86.0 |
66.0 |
50.5 |
22.1 |
|
1.5" |
266.0 |
148.0 |
86.0 |
86.0 |
70.0 |
50.5 |
34.8 |
|
2" |
280.0 |
148.0 |
100.0 |
86.0 |
76.0 |
64.0 |
47.5 |
|
2.5" |
295.0 |
148.0 |
115.0 |
86.0 |
80.0 |
77.5 |
60.2 |
|
3" |
308.0 |
148.0 |
128.0 |
86.0 |
84.0 |
91.0 |
72.9 |
|
4" |
334.0 |
148.0 |
154.0 |
86.0 |
104.0 |
119.0 |
97.4 |
|
6" |
440.0 |
183.0 |
225.0 |
108.0 |
130.0 |
166.8 |
146.8 |
Pressure:
* 4 Bar air to air, full open and close
* 5.5 Bar air to spring, full open and close
* Suitable for 1" to 4" Butterfly Valves
