- 蝶閥-夾式
- 規格
- 材料表

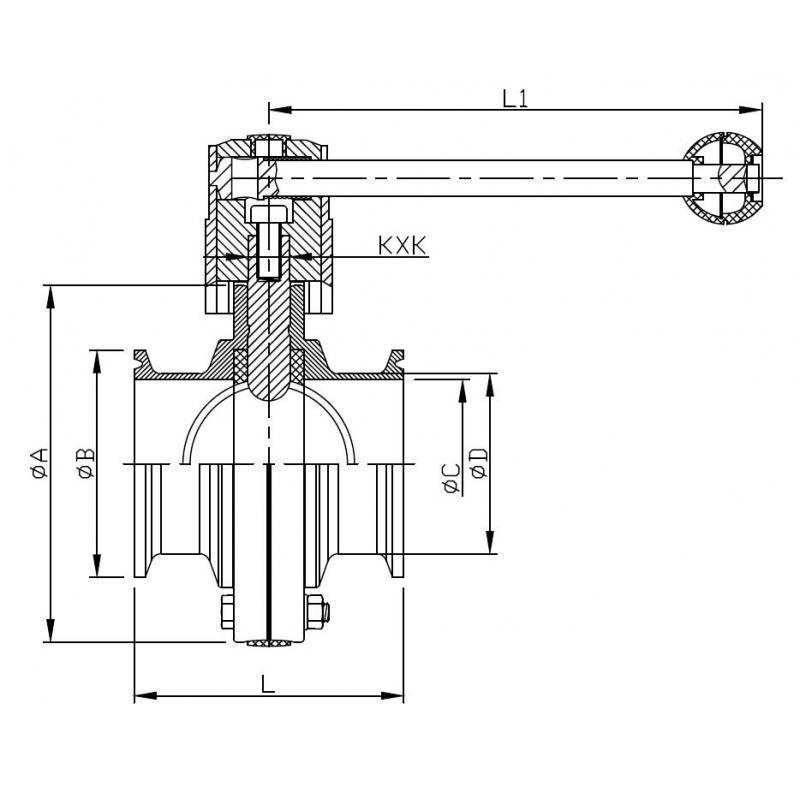

Unit: mm
|
SIZE |
øA |
øB |
øC |
L |
L1 |
|
1" |
78.0 |
50.5 |
38.1 |
66.0 |
136.0 |
|
1.5" |
86.0 |
50.5 |
38.1 |
70.0 |
136.0 |
|
2" |
100.0 |
64.0 |
50.8 |
76.0 |
136.0 |
|
2.5" |
115.0 |
77.5 |
63.5 |
80.0 |
136.0 |
|
3" |
128.0 |
91.0 |
76.2 |
84.0 |
163.0 |
|
4" |
154.0 |
119.0 |
101.6 |
104.0 |
163.0 |
|
6" |
225.0 |
166.8 |
152.4 |
130.0 |
185.0 |
Connection Clamp, Butt-Weld, Male Part
Pressure 1"-4" 145 PSI @ 68°F
Temperature Range -15°F To 200F (-10°C To 95°C)
|

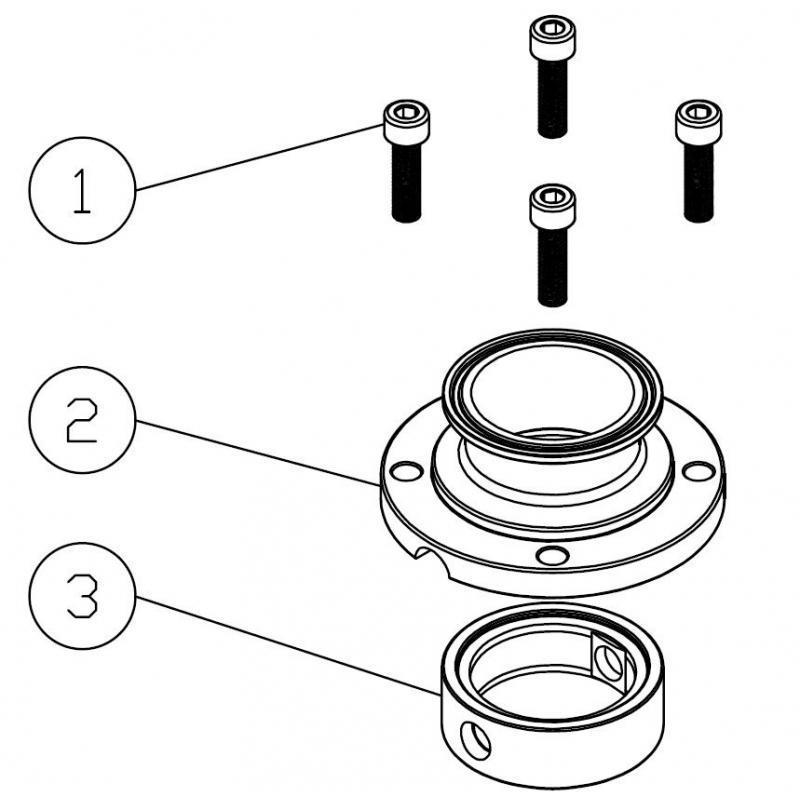

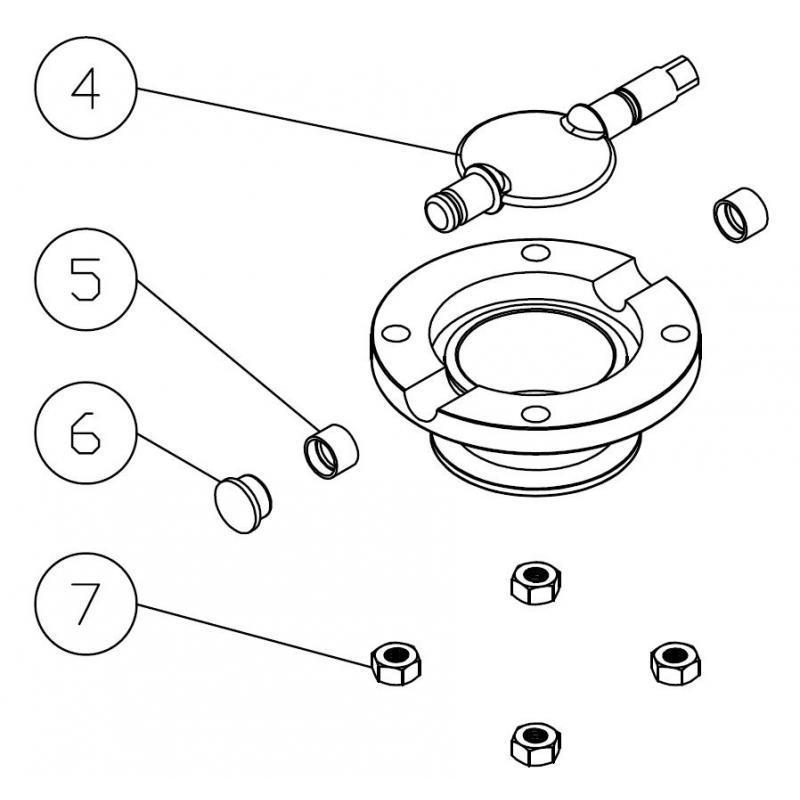

NO |
DESCRIPTION |
MATERIAL |
QTY |
|
1 |
BOLT |
304 |
4 |
|
2 |
BODY |
304/316L |
2 |
|
3 |
SEAL |
SILICONE/EPDM/ VITON |
1 |
|
4 |
DISC |
304/316L |
1 |
|
5 |
BUSH |
ABS |
2 |
|
6 |
CAP PLUG |
ABS |
1 |
|
7 |
NUT |
304 |
4 |
