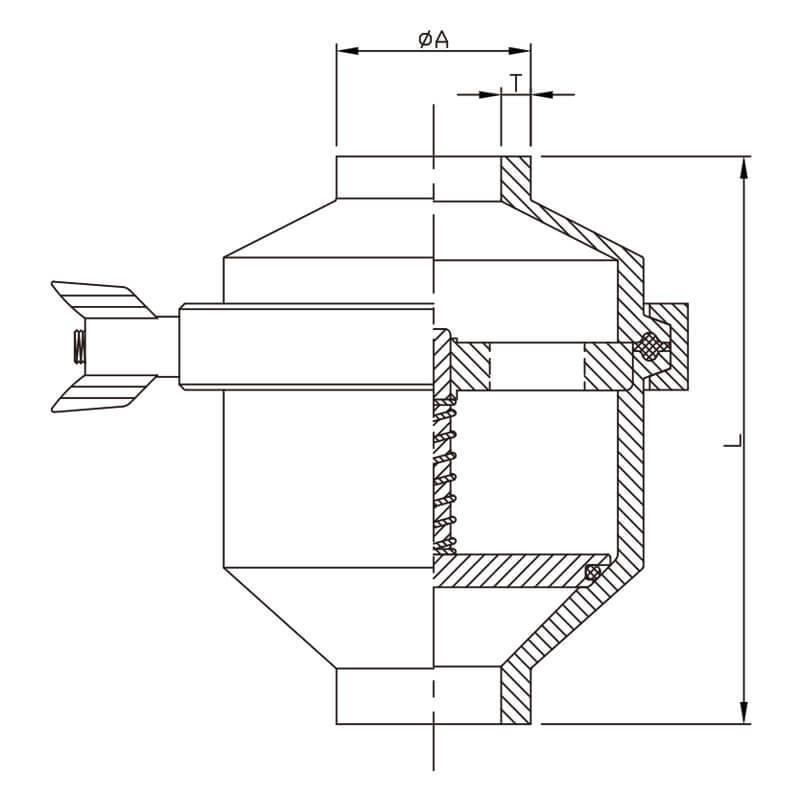

SIZE

øA

T

L

1"

25.4

1.65

77.5

1.5"

38.1

1.65

80.5

2"

50.8

1.65

85.5

2.5"

63.5

1.65

96.5

3"

76.2

1.65

104.5

4"

101.6

2.10

104.5

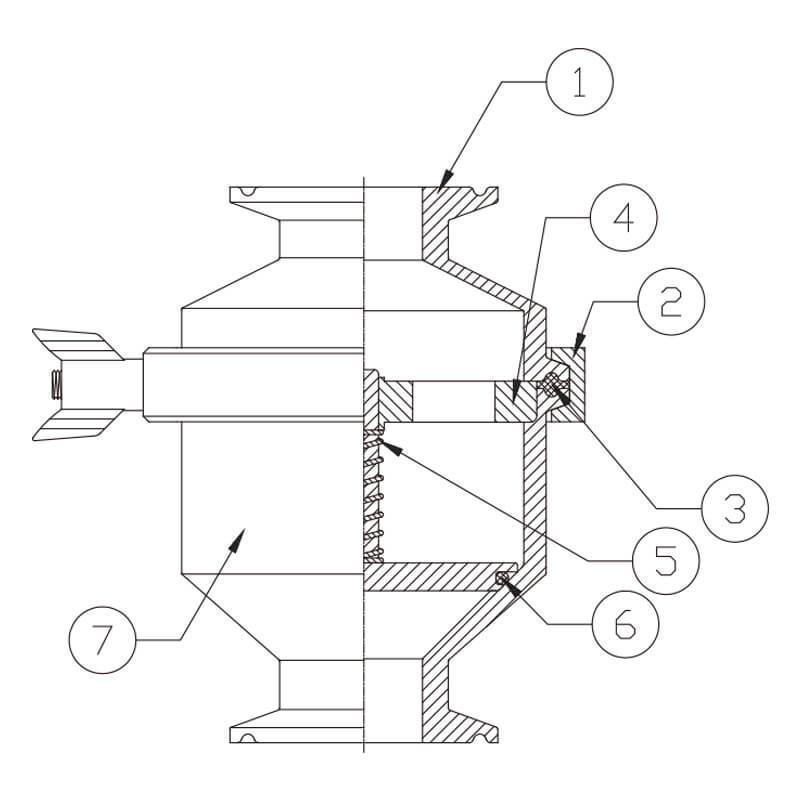

NO

PART

MATERIAL

1

OUTLET (Body/Bonnet)

SUS-304, 316, 316L

2

CLAMP

SUS-304

3

GASKET

VITON, EPDM, SILICONE

4

PLATE

SUS-304, 316, 316L

5

SPRING

SUS-304, 316

6

SEAL

VITON, EPDM, SILICONE

7

INLET (Lower body)

SUS-304, 316, 316L
