- 桶底閥
- 規格

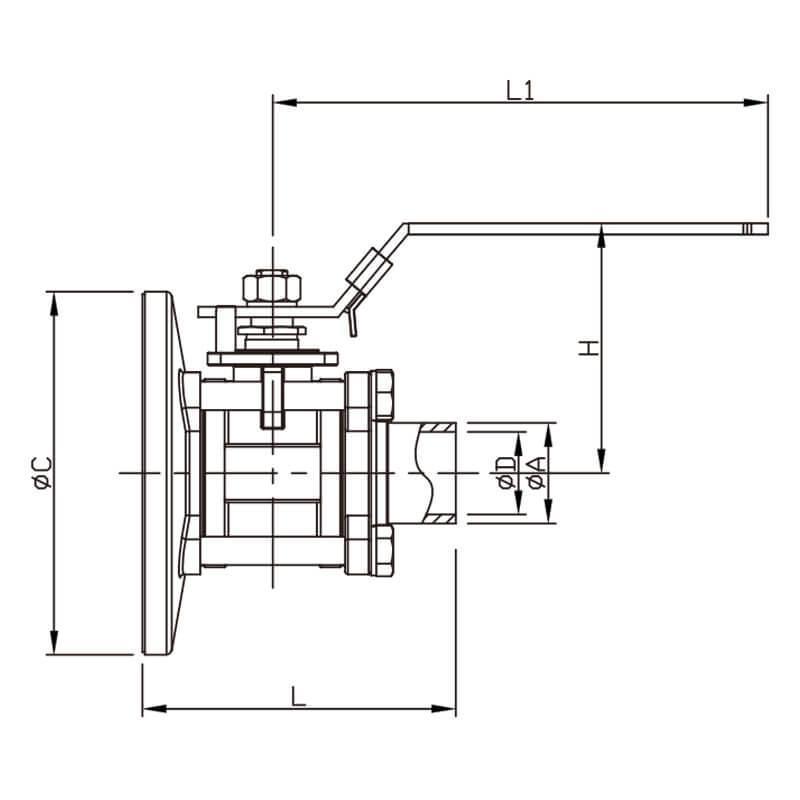

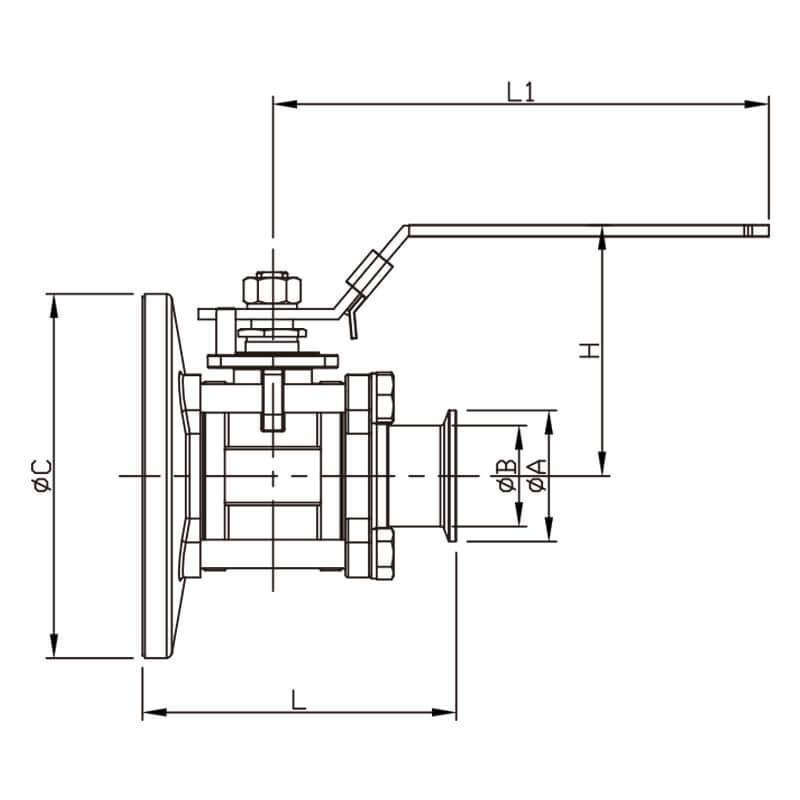

Unit: mm
|
SIZE |
øA |
øB |
øC |
øD |
L |
L1 |
H |
|
1.5" |
50.5 |
38.1 |
140.0 |
35.1 |
119.0 |
170.0 |
94.0 |
|
2" |
64.0 |
50.8 |
140.0 |
47.8 |
133.5 |
170.0 |
102.5 |
|
2.5" |
77.5 |
63.5 |
180.0 |
59.5 |
164.0 |
240.0 |
120.0 |
|
3" |
91.0 |
76.2 |
200.0 |
73.0 |
184.0 |
240.0 |
130.0 |
